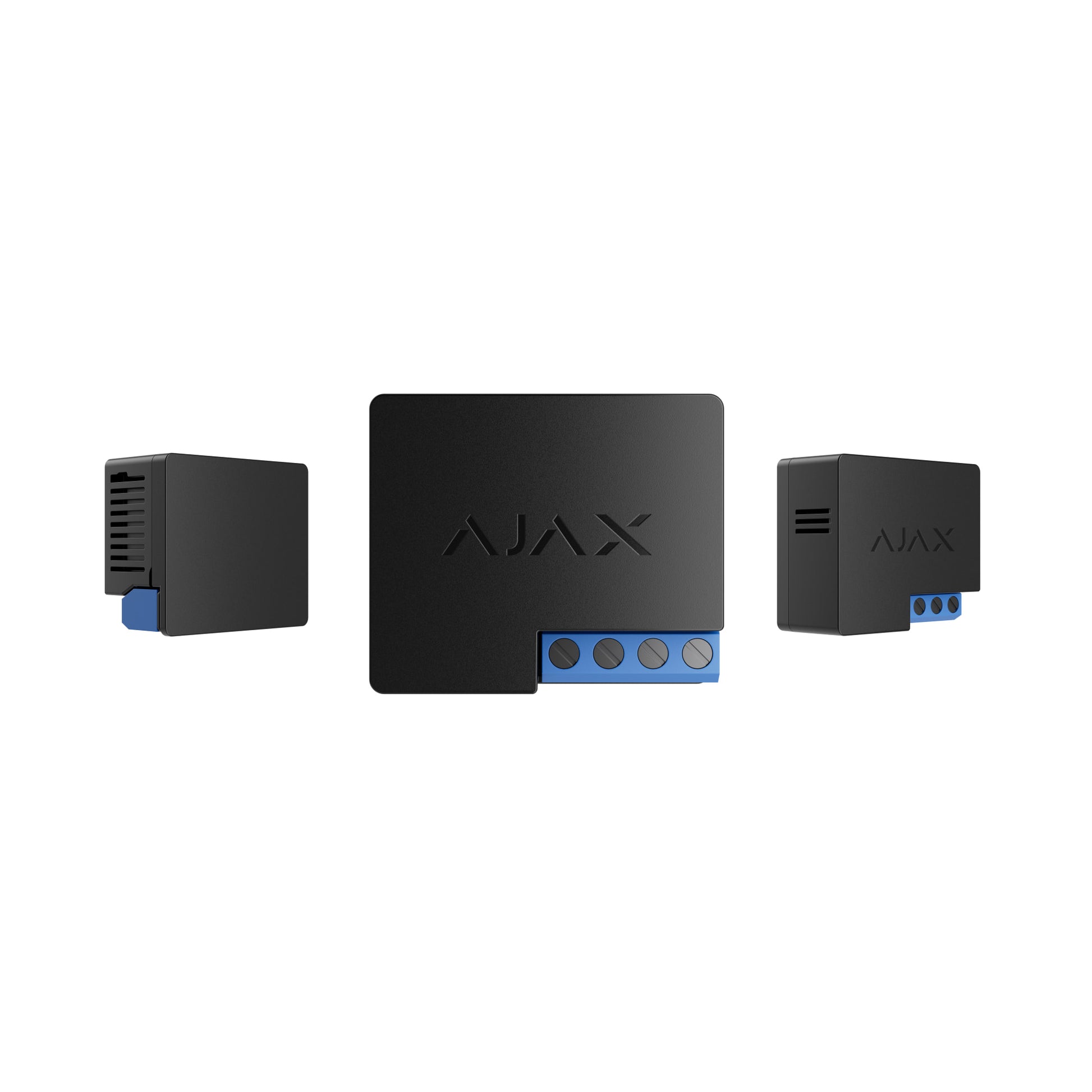

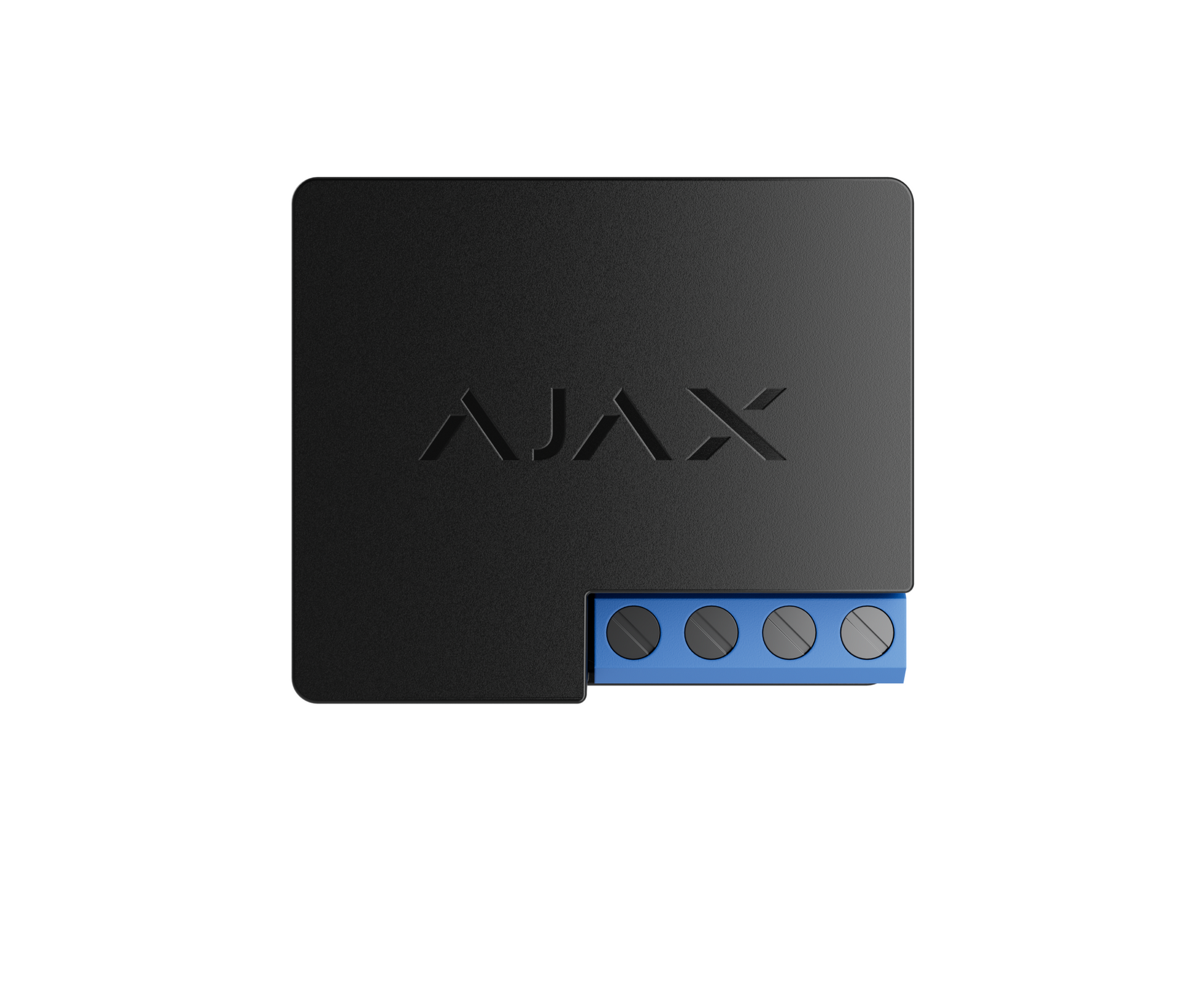

Relay

Low‑current Relay for Remote Device Control

Description
Relay is a compact, low-current wireless relay module designed to integrate with Ajax security systems, enabling remote control of various electrical devices. Installed inside an electrical panel or junction box, Relay supports both pulse and bistable modes, offering flexible control over equipment such as gates, locks, smoke cannons, roller shutters, or flood-prevention systems. With ultra-low power requirements and a secure Jeweller wireless connection, Relay brings smart automation into even the most space-constrained setups.


Key Features

  • Flexible Control Modes
    Supports both pulse (0.5–255 s adjustable) and bistable modes with normally open or normally closed contact states.
  • Wide Compatibility
    Works with all Ajax hubs and range extenders (ReX / ReX 2) over Jeweller communication.
  • Dry Contact Output
    Galvanically isolated from its own power supply, making it suitable for both low-voltage and household installations.
  • Miniature & Easy to Install
    Just 39 × 33 × 18 mm and 25 g: fits inside junction boxes, DIN holders, or electric panels. Installs in under a minute via QR code pairing.
  • High Relay Lifespan
    Designed for at least 200,000 switching cycles.
  • Secure & Reliable Wireless Communication
    Two-way encrypted AES communication over Jeweller, supports frequency hopping and delivers commands in ~0.15 s with adjustable scan intervals (12–300 s).
  • Extensive Coverage
    Up to 1,000 meters range in open space to the central Ajax hub or repeater.
  • Robust Operation
    Operates between –20°C and +64°C, up to 85% humidity, IP20 casing, with anti-sabotage, jamming detection, and remote testing capabilities.

Tech Specifications

Parameter Specification
Power Supply 7–24 V⎓ DC only
Maximum Load Current 5 A at 24 V⎓ / 13 A at 230 V~
Voltage Protection Max 36.5 V⎓ / Min 6.5 V⎓
Relay Modes Pulse (adjustable 0.5–255 s) / Bistable
Contact State Normally Open or Normally Closed
Relay Lifetime ≥200,000 switch-ons
Operation Temperature –20°C to +64°C
Operating Humidity Up to 85% (no condensation)
Dimensions 39 × 33 × 18 mm
Weight 25 g
Protection Class IP20

Communication Details

  • Jeweller Radio Protocol
    • Two-way communication, AES block encryption, dynamic key authentication.
    • Frequency hopping and self-adjusting RF power up to 25 mW.
    • Frequency bands vary by region:
    • 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz,
    • 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz.
  • Command Latency: ~0.15 s
  • Device Scan Interval: Adjustable from 12 to 300 seconds

Installation & Setup

  • Tool-Free Setup:
    Fits easily into electric panels or junction boxes. External antenna ensures strong signal.
  • Quick Pairing:
    Add to your Ajax system by scanning the QR code in the Ajax app—ready within seconds.

Applications & Use Cases

  • Flood-Prevention: Automatically shut off water supply when LeaksProtect detects a leak or via scheduled scenarios.
  • Gate & Barrier Control: Open/close via the Ajax app or Button.
  • Electric Lock: Lock/unlock doors remotely or via security scenarios.
  • Smoke Cannon Activation: Deploy deterrent if a detector or panic button is triggered.
  • Blind & Curtain Control: Automate based on time, security status, or alerts.
  • Access Control Blocking: Disable ACS readers when arming to prevent unauthorized entry.

Extra Features

  • Dry contact output suitable for low-voltage and household circuits
  • Relay pulse duration configurable (0.5–255 s)
  • Remote diagnostics & testing available from the Ajax PRO app

Warranty & Lifespan

  • Warranty: Repair or replacement within 24 months from purchase
  • Service Life: Up to 10 years
