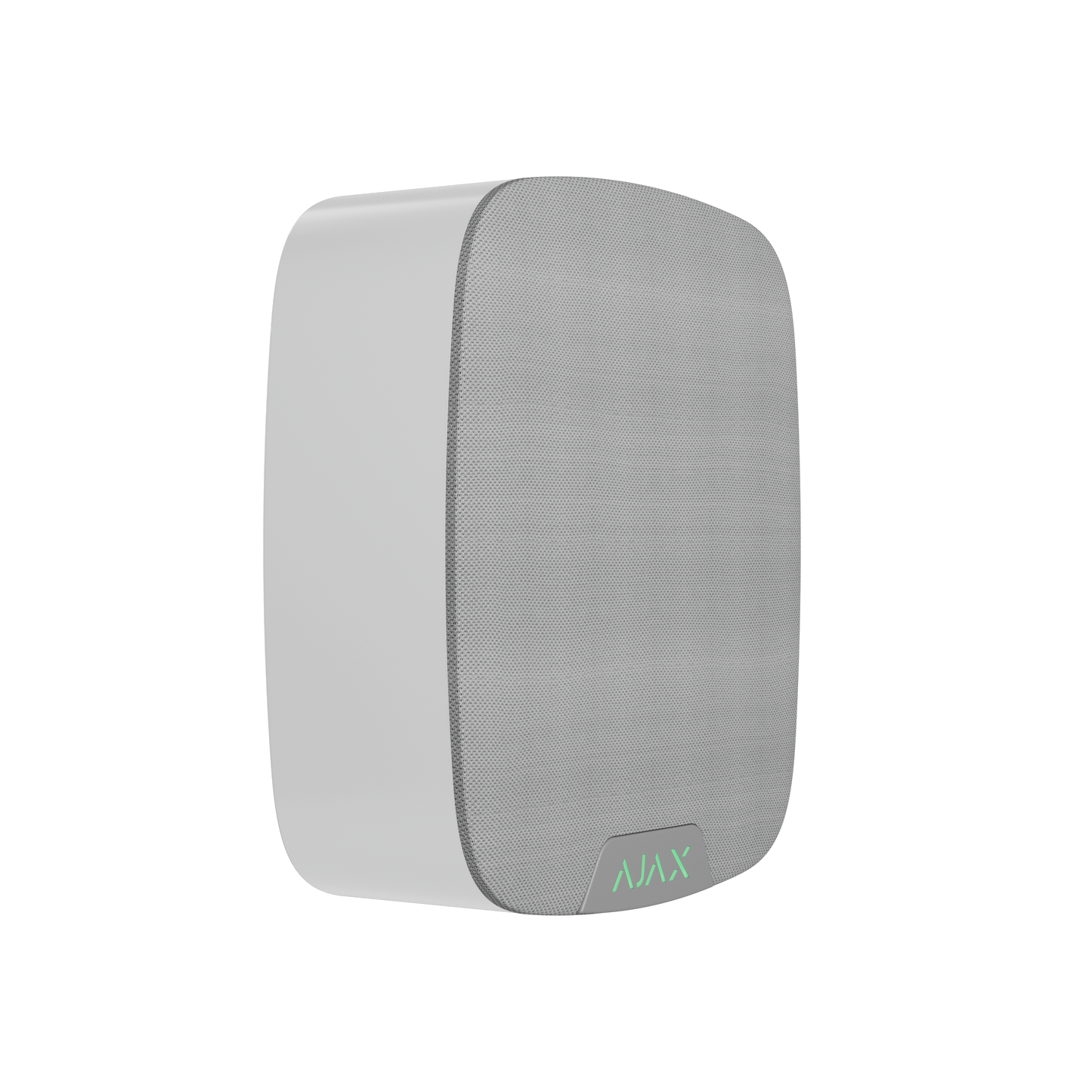

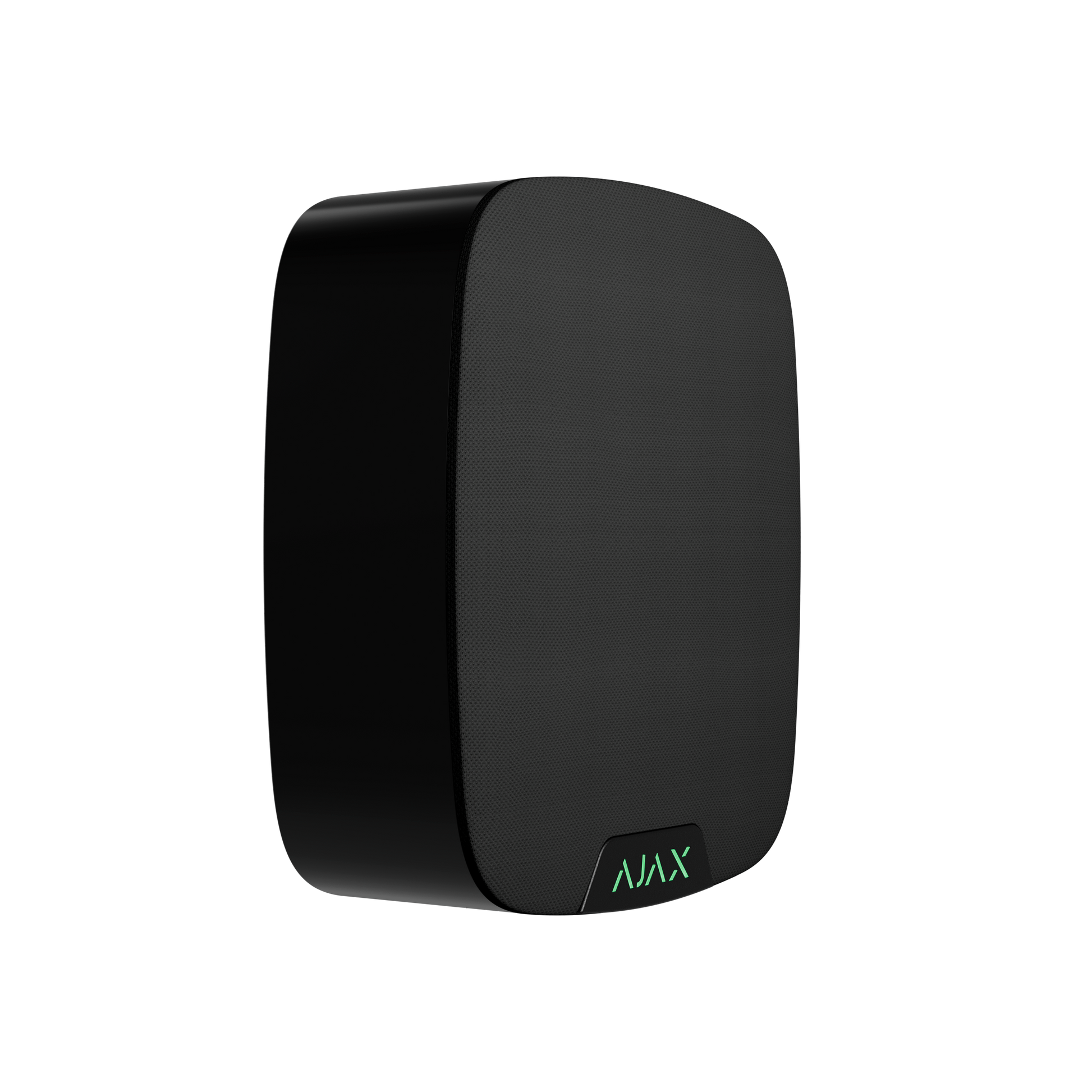

Ajax SpeakerPhone Jeweller: Real-Time Audio Alarm Verification

The SpeakerPhone Jeweller is a wireless voice module designed to bridge the gap between an alarm and a response. It provides direct, two-way voice communication between a central monitoring station (CMS) and a secured site. This powerful tool allows CMS operators to immediately assess a situation, prevent false dispatches, and take the right action—all in real-time.

With proprietary wireless technologies and AI-powered sound optimization, the SpeakerPhone Jeweller offers a clear and reliable voice link to protect your property and provide peace of mind.

Hear the Situation, See the Solution

The SpeakerPhone Jeweller transforms how you respond to an alarm by providing instant audio verification.

• Loud and Clear Communication: A 3W speaker with a volume of up to 103 dB ensures every call is heard. An AI-powered microphone with deep learning technologies guarantees clear voice transmission even at 10 meters and suppresses extraneous noise for added clarity.
• Full-Duplex Voice: Using the proprietary VoRF audio streaming protocol, the device enables seamless, two-way conversations without needing to press a button on-site.
• Flexible Interaction: The system provides three ways for a monitoring company to connect in an emergency: the CMS operator can call the site, the hub can automatically call the CMS, or the CMS can request a callback.

Built for Reliability & Comprehensive Protection

The SpeakerPhone Jeweller is engineered with multiple layers of security to ensure uninterrupted communication and maximum protection.

• Advanced Sabotage Protection: The device features a tamper alarm to notify of any detachment attempts, a microphone cut-off detection for added security, and protection against spoofing.
• Unwavering Connectivity: Powered by Jeweller technology, the device ensures a reliable radio communication range of up to 1,700 m. This is supported by Wings technology for hassle-free, over-the-air updates.
• Stable Performance for Years: The device operates for up to 3 years on pre-installed batteries in standby mode, with an option for an external 12 V power supply. The batteries serve as a backup, ensuring continuous operation even during a power outage.
• Smart Scaling: One system supports up to ten SpeakerPhone Jeweller devices, allowing you to cover large facilities. Devices can be configured to activate only when detectors in the same security group are triggered, ensuring precise situational awareness.

Tech Specs

• Compatibility: Hub 2 (4G), Hub Hybrid (4G)
• Communication: VoRF (audio), Jeweller, Wings
• Radio Range: Up to 1,700 m
• Speaker: 3W, up to 103 dB
• Voice Audibility: Up to 10 m
• Power Supply: 4 x CR123A batteries (up to 3 years) or 12 V external
• Protection Class: IP50
• Warranty: 24 months

The Ajax SpeakerPhone Jeweller is a fast and simple way to keep in contact with your secured facility, providing a critical tool for alarm verification, deterring intruders, and ensuring a swift, informed response.
